SEMI AUTOMATIC CROSS-CUT SAW TVM 700 BLADE Ø700

01-Cursal-TVM700-woodworking _crosscut_saw

TVM 600 and TVM 700 – Power and Versatility for Demanding, High-Volume Production

The TVM 600 and TVM 700 crosscut saws are the perfect combination of power, precision, and versatility, designed to meet the needs of industrial-scale production.
These machines offer an exceptional cutting capacity thanks to their vertical reciprocating blade movement and large-diameter blade, ensuring fast, accurate cuts while minimizing downtime and boosting overall efficiency.

Key Features
The modular structure of the TVM 600 and TVM 700, combined with a wide range of customizable accessories, allows seamless integration into different production lines.
They can be configured with advanced systems such as electro-pneumatic stops and CNC-controlled end stops, making them highly adaptable to various production requirements. Simplified maintenance extends their lifespan and helps reduce operating costs.

Strengths

Flexible configuration: Easily adaptable to different applications and production environments through customizable setups.

Their cutting speed significantly reduces processing time, improving output and overall efficiency.

Robustness and reliability: Built for continuous operation with minimal maintenance, thanks to a durable and heavy-duty design.

Technology, Innovation, and Performance
Their vertical blade movement optimizes cutting cycles.

Ergonomics and operator safety are a top priority, with, with design features aimed at minimizing fatigue and ensuring a safe working environment.

Application Sectors
TVM 600 and TVM 700 are ideal for the packaging sector, semi-finished furniture components, structural timber processing with thick materials, and other industrial contexts requiring speed, accuracy, and high processing capacity.

If your production demands a crosscut saw that delivers power, flexibility, and consistent performance, these models are the perfect choice.

TVM 700: Strength and Innovation for Industrial

Production

The TVM 700 is the perfect solution for those who need to handle complex cuts and large-sized materials without compromising on precision.
With a greater cutting capacity than the TVM 600, it is ideal for high-intensity industrial production requiring reliable and top-level performance.
Its solid structure and vertical reciprocating blade movement allow it to process solid wood and thick panels with ease, ensuring fast and accurate cuts.

Designed for the construction, sawmill, and packaging industries, the TVM 700 is perfect for handling heavy materials and managing large loads without sacrificing cut quality.
Its modular configuration allows integration with specific accessories that further optimize production processes, offering both flexibility and customization.

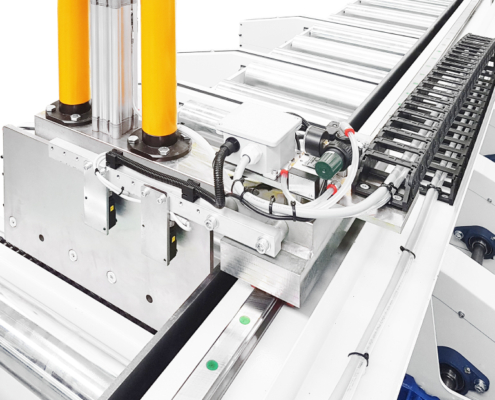

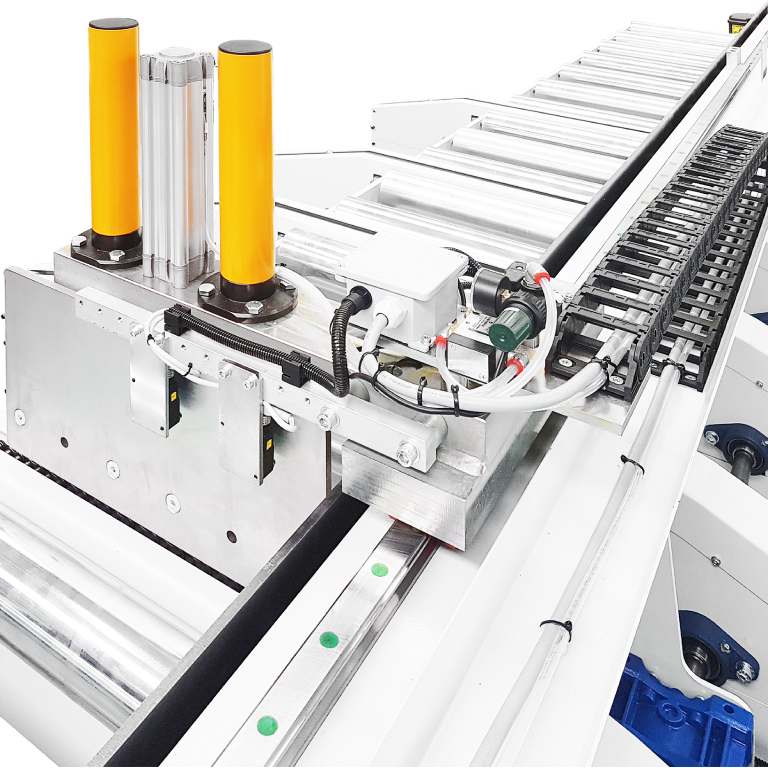

95% of TVM 700 units are equipped with CURSAL’s FCN electronic stop, highly valued not only for its precision and flexibility but also for its ability to absorb the impact generated by large boards.

In summary, the TVM 700 is a powerful and versatile machine designed to deliver maximum reliability and superior performance in demanding industrial environments.

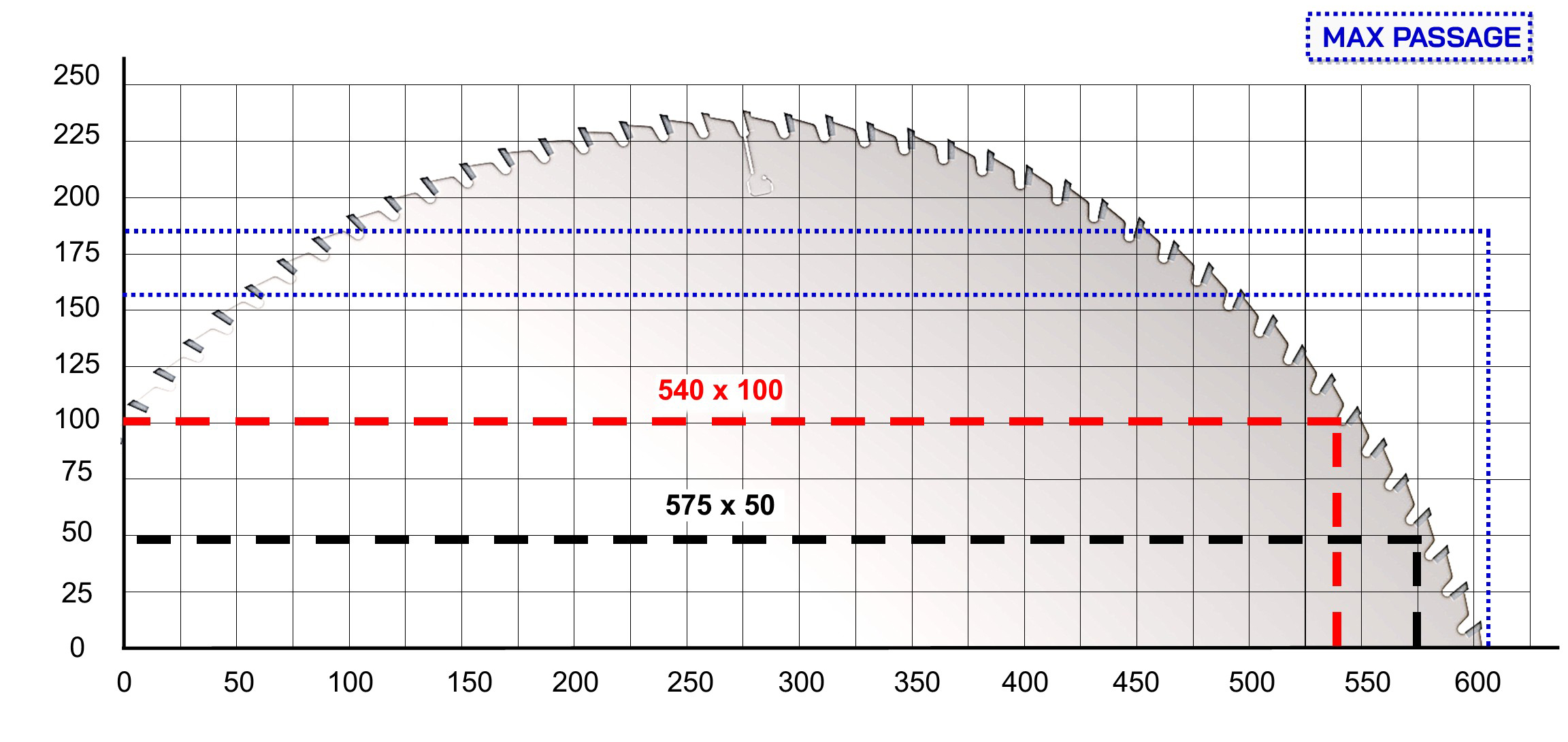

CUTTING SECTIONS

TVM 700 BLADE Ø700 Ø40 Z80

TVM 700
ADVANCED 20 mm BLADE Ø700 Ø40 Z80

TVM 700
ADVANCED 50 mm BLADE Ø700 Ø40 Z80

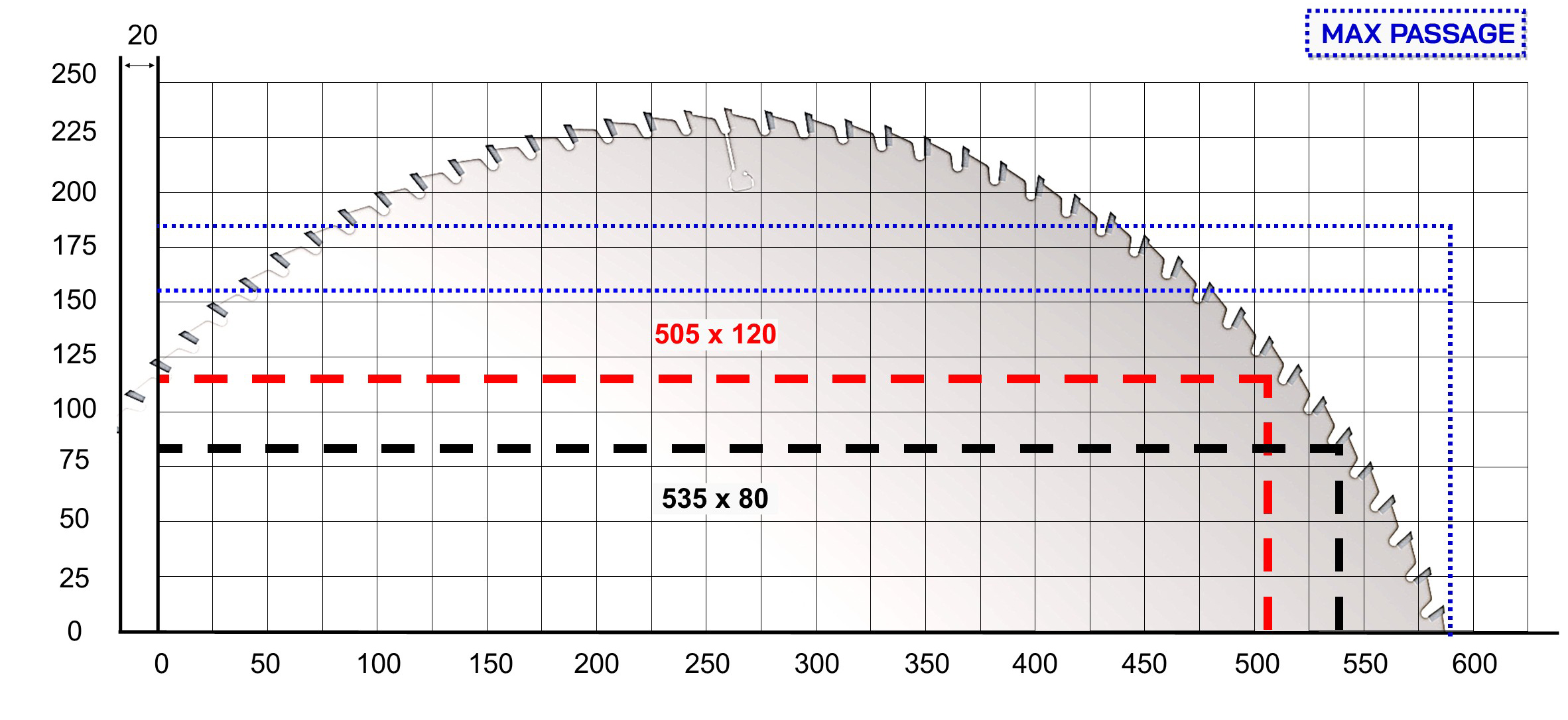

TVM 700 AVANZATO 20 mm LAMA Ø700 Ø40 Z80

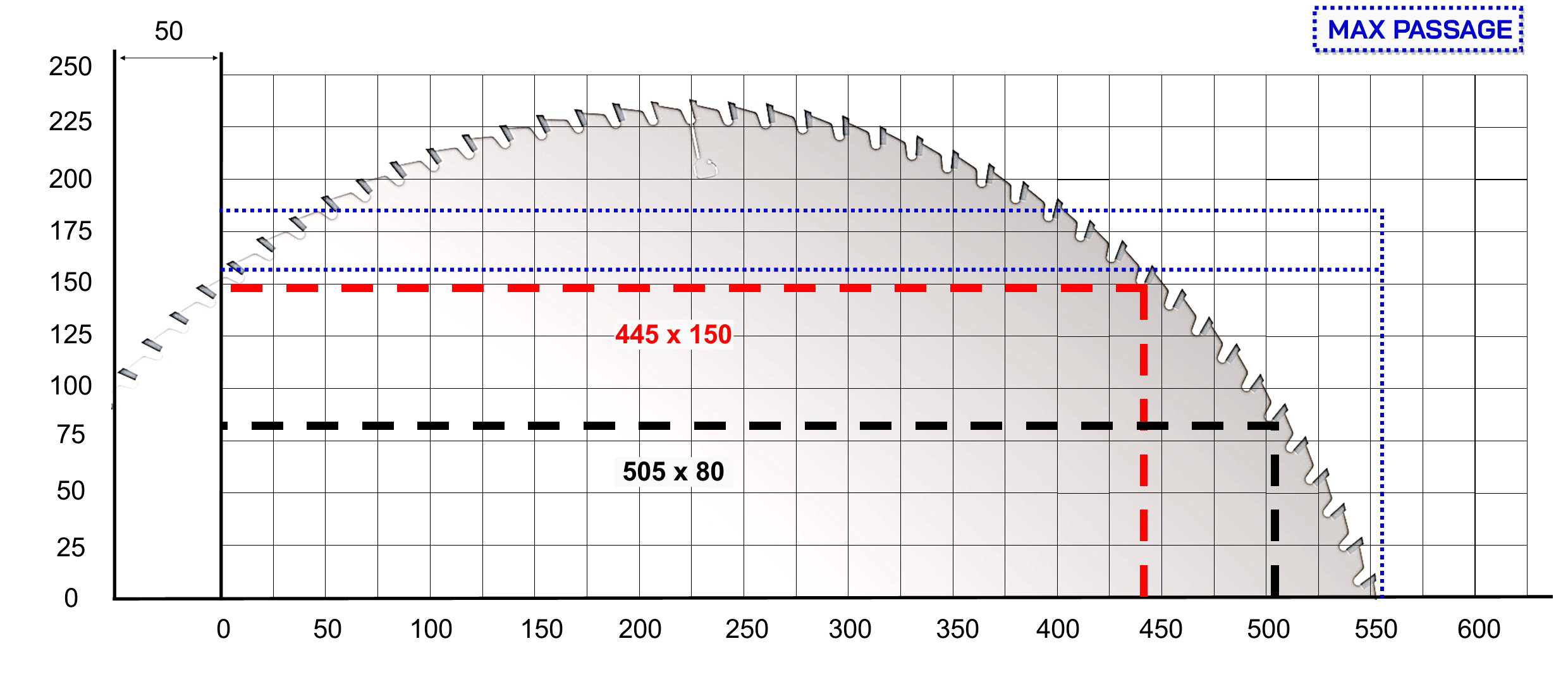

TVM 700 AVANZATO 50 mm LAMA Ø700 Ø40 Z80

VIDEO

VIDEO N° 261

VIDEO N° 292

ACCESSORIES

TECHNICAL DATA

N°	TECHNICAL CHARACTERISTICS	UNIT OF MEASURE	DESCRIPTION / MODEL
			TVM 400	TVM 500	TVM 600	TVM 700	TOM 500-900	TOM 500-1100
01	Cutting height on guide	mm	95	120 (150)	120 (130)	100 (150)	120	120
02	Maximum cutting height (blade center)	mm	See cutting sections
03	Maximum cutting width	mm	250	370	450	575	75 x 820	75 x 1075
04	Operators required (maximum)	n°	1
05	Board feed system	←	from RIGHT to LEFT
06	Saw motor power	KW	2,2 (3)	4 (5,15)	7,35 (11)		9,0 (14,7)
07	Stroke of the blade clamp (* automatic adjustment)	mm	100	125 (175)	150 *	175 *	175 *	175 *
08	Three-phase voltage Hz	V / Hz	400 -/+ 10% Hz 50/60
09	Compressed air pressure	bar	6 / 10
10	Compressed air consumption	nl/min	65 / 100	80 / 130	100 / 180	120 / 200	250 / 350	250 / 380
11	Suction pipe diameter	mm	120		140
12	Suction pressure	mm/H2O	150 / 250
13	Average noise level for the operator	DBA	< 78		< 79		< 80
14	Working table height +/- 20	mm	900
15	Blade specifications Ø Z	mm/N°	30 / 400 z 120	30 / 500 z 120	35 / 600 z 96	40 / 700 z 80	35 / 500 z 120	35 / 500 z 120
16	Cross-cut saw length (total)	mm	580 (860)		600 (960)		800 (1080)
17	Depth	mm	870	950	1100	1240	1525	1725
18	Maximum height	mm	1200	1260	1800		1510 / 1910
19	Weight without packaging	Kg.	250	270	450	480	755	800
20	Colours	RAL	7035 / 7024 / 1007
