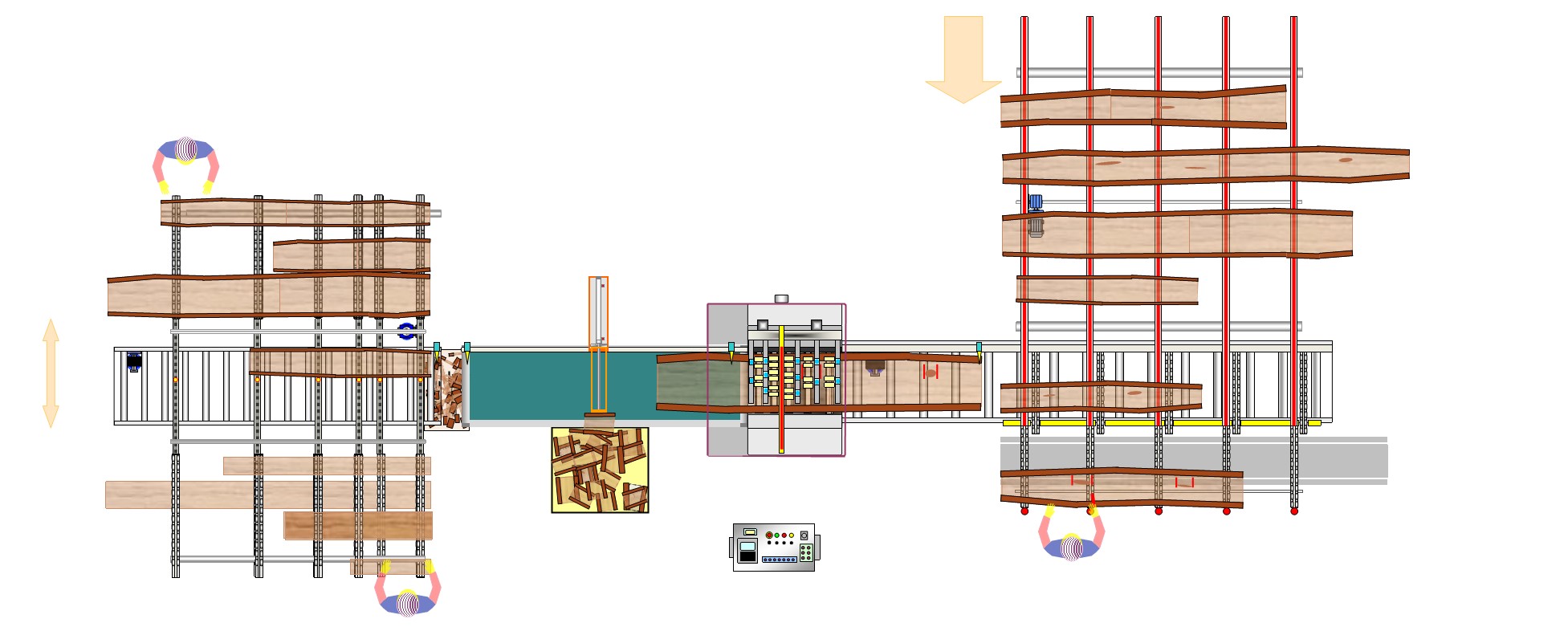

It does everything alone. Cursal has designed this cross cutting line aiming at the automation of all handling operations for planks, including sticks separators collection.

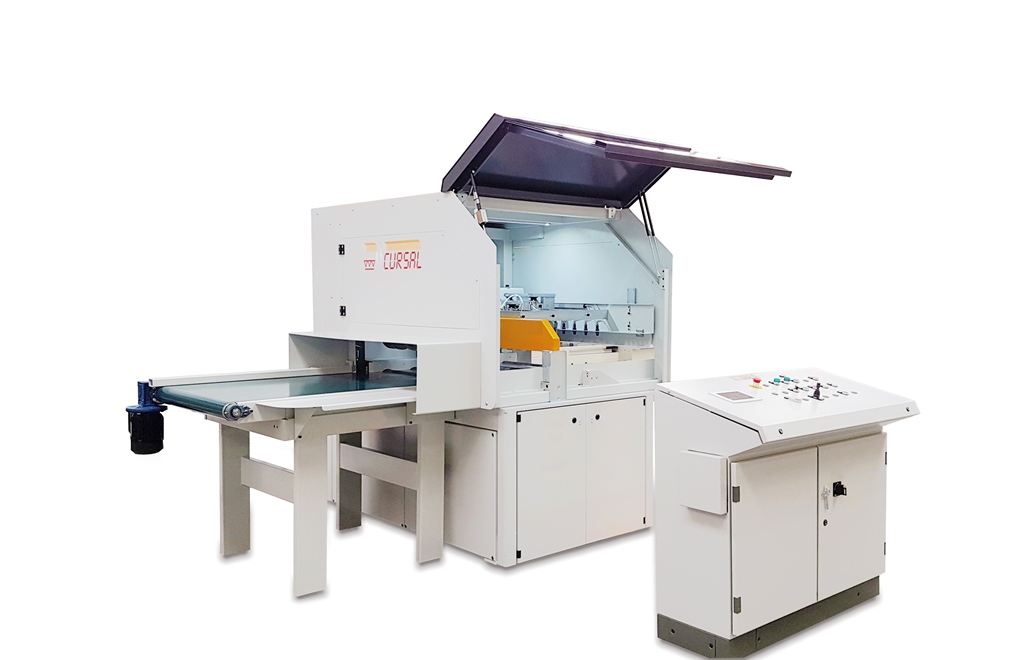

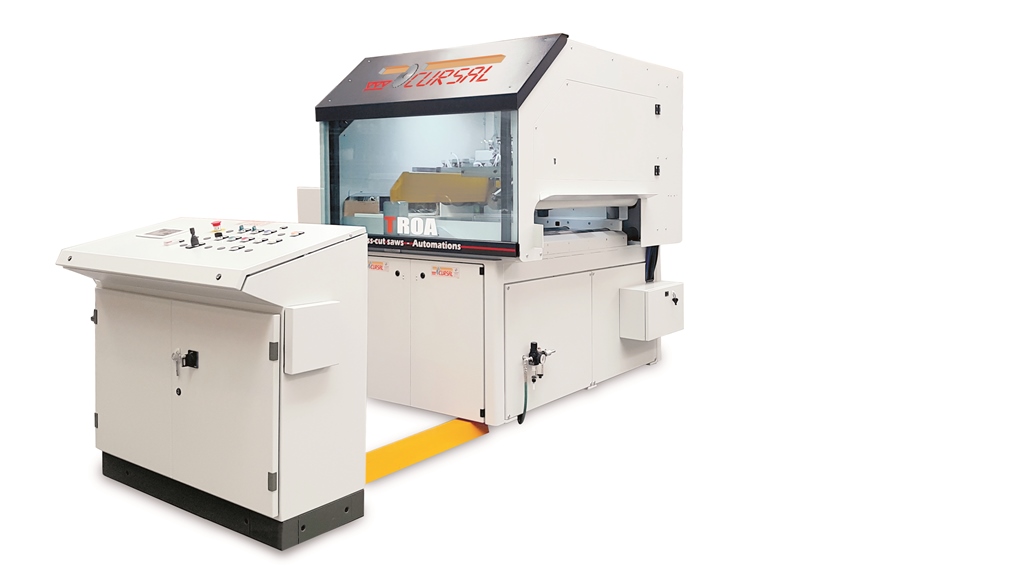

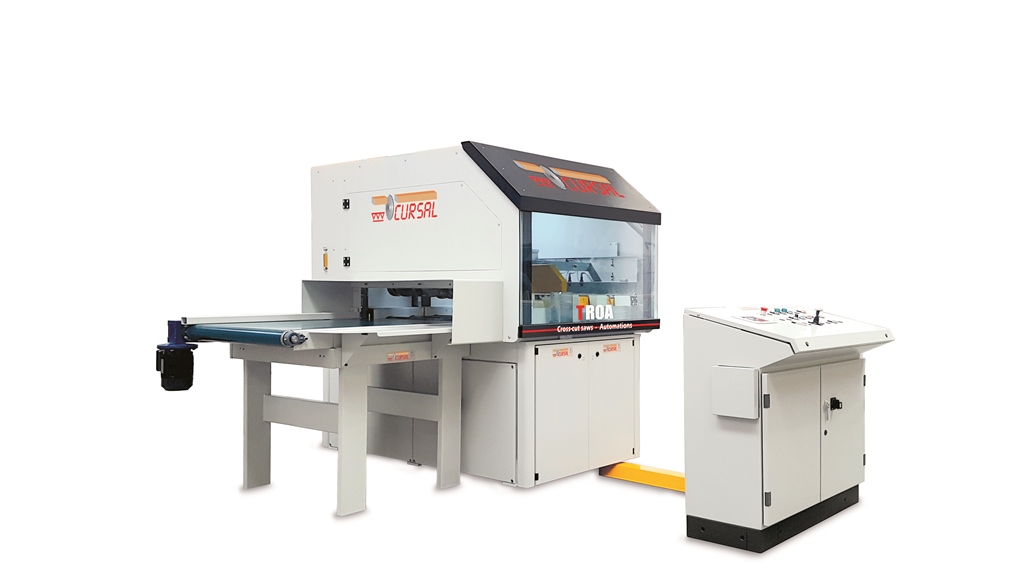

The cross-cut saw TROE was especially designed for crosscutting non-trimmed planks that are twisted and separated by cracks.
THE LOWER HAUL-OFF DOES NOT HAVE INTERRUPTIONS AND HAS A SELF-LIMITED SPEED AT 120 LM/MIN.
(Haul-off characteristics: 5 rollers in toothed and nitride sectors; NC 26 pressure wheels, independently on the upper side and in part hauled, with surfaces set for guiding or hauling.)
– Planks transfer is optimized by reducing the path to the minimum.
– Defects reading is assisted by a laser handled with NC.
– Over 5 planks (hard wood and high-grade timber) can be cut off per minute.
The generous cutting sections that TROE offers (reaches one meter in width), hence enabling a working range that is basically unlimited and unimaginable working qualities for any other crosscutting line. Available with Cursal optimization, it can take advantage of most accessories on this catalogue.
☑☑☑☑☐ Semi-machined pieces for wood furniture
☑☑☑☑☐ Parquets, flooring
☑☑☑☑☐ General saw-mill works
STANDARD TECHNICAL DATA
|Blade motor||Working height plan||Air consumption||Maximum speed|
|11 / 15||950|
|200 / 400||110 ÷ 120|
AVAILABLE CUTTING SECTIONS
The manufacturer reserves the right to make changes without prior notice at any time
